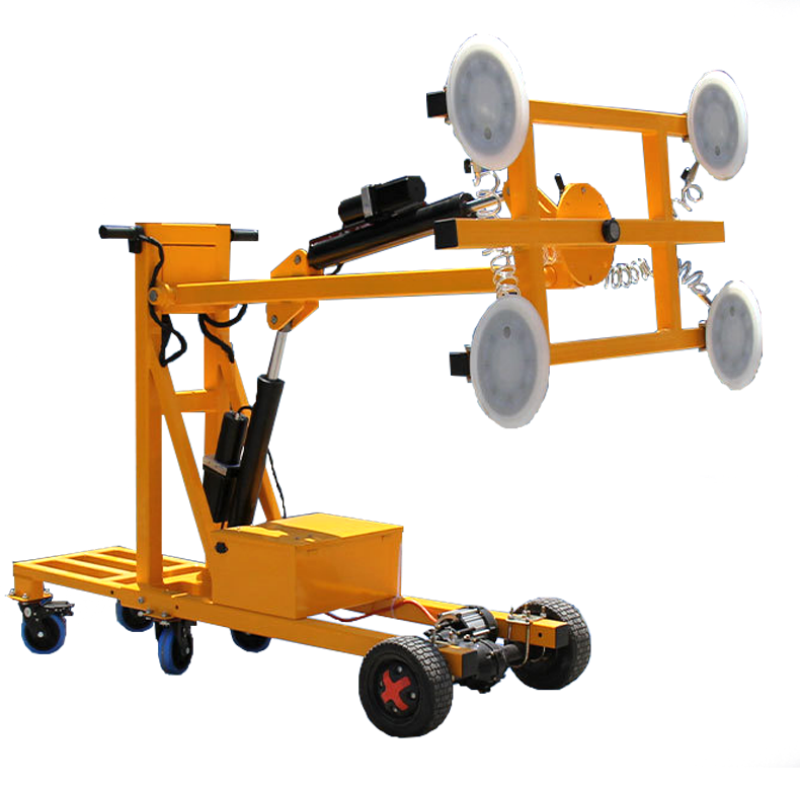

Vacuum Lifter Trolley

This robust vacuum lifter trolley features pressure auto-maintenance (power-fail protection), independent suction cups, and self-propulsion. It streamlines heavy load operations (glass, stone, panels) with efficient, labor-saving handling for industrial/construction use.
EMAIL INQUIRY

Model Type	LD400T	LD600T	LD800T	LD1000T	LD1200T	LD1500T
Rated Capacity	400kg	600kg	800kg	1000kg	1200kg	1500kg
Arm Length	1.5m	1.5m	1.5m	1.5m	1.5m	1.5m
Lifting Height	2m	2m	2m	2m	2m	2m
Sucker Diameter	300mm	300mm	300mm	300mm	300mm	300mm
Sucker Qty.	4pc	6pc	8pc	10pc	12pc	16pc
Cylinder Capacity	3000kg	3000kg	5000kg	5000kg	5000kg	8000kg
Chassis (mm)	1200*750	1200*750	1200*750	1200*750	1200*750	1200*750
Sucker Frame(mm)	620*760	620*1160	620*1700	620*2200	620*2600	620*3600
Gel Battery	4*12V 12AH	4*12V 12AH	4*12V 12AH	4*12V 12AH	4*12V 20AH	4*12V 20AH
Smart Charger	48V 15A	48V 15A	48V 15A	48V 15A	48V 25A	48V 25A
