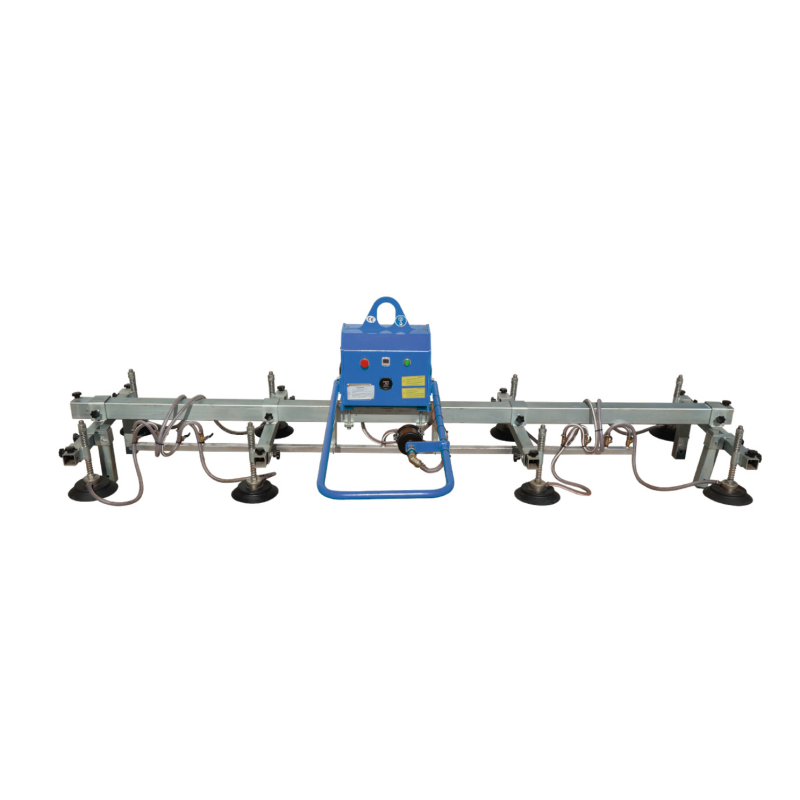

Metal Sheet Suction Cup

The Metal Sheet Electric Vacuum Suction Cup Lifter is a reliable and efficient solution for lifting, transporting, and positioning metal sheets and steel plates in industrial environments. Powered by an electric vacuum system, it provides strong and stable suction to ensure safe handling of flat metal materials.

Designed with multiple adjustable suction cups, this lifter offers balanced load distribution and secure grip during lifting operations. The robust steel frame ensures durability, while the compact electric control unit allows easy operation and precise control.

This vacuum suction cup lifter is widely used in metal fabrication, shipbuilding, warehouse handling, and manufacturing industries. It helps reduce manual labor, improve work efficiency, and enhance safety, making it an essential tool for modern metal sheet handling tasks.
EMAIL INQUIRY

Metal Sheet Suction Cup	SC500M3	SC500M4	SC600M3	SC600M4	SC800M3	SC800M4	SC1000M3	SC1000M4	SC1000M6	SC1500M	SC2000M
Rated Load Capacity (kg)	500	500	600	600	800	800	1000	1000	1000	1500	2000
Suction Cup Size (mm)	Φ210	Φ210	Φ210	Φ210	Φ210	Φ210	Φ210	Φ210	Φ210	Φ300	Φ300
Number of Cups (pcs)	6/8		6/8		8		10			8/10	10/12
Main Beam Length (mm)	2000	3000	2000	3000	2000	3000	2000	3000	2800–5000	2800–5000	2800–5000
Branch Beam Length (mm)	800	800	800	800	800	800	800	800	800	800	800
Voltage	DC12V/12Ah ×2 or AC380V/50Hz
Suitable Sheet Metal Length (mm)	3000	4000	3000	4000	3000	4000	3000	4000	6000	6000	6000
Packing Size (mm)	2050×400×620	3050×400×620	2050×400×620	3050×400×620	2050×400×620	3050×400×620	2050×400×620	3050×400×620	3070×730×480	3070×730×480	3070×730×480
Weight (kg)	140/145	150/155	145/155	155/165	155	165	160	170	235	240/255	255/275
