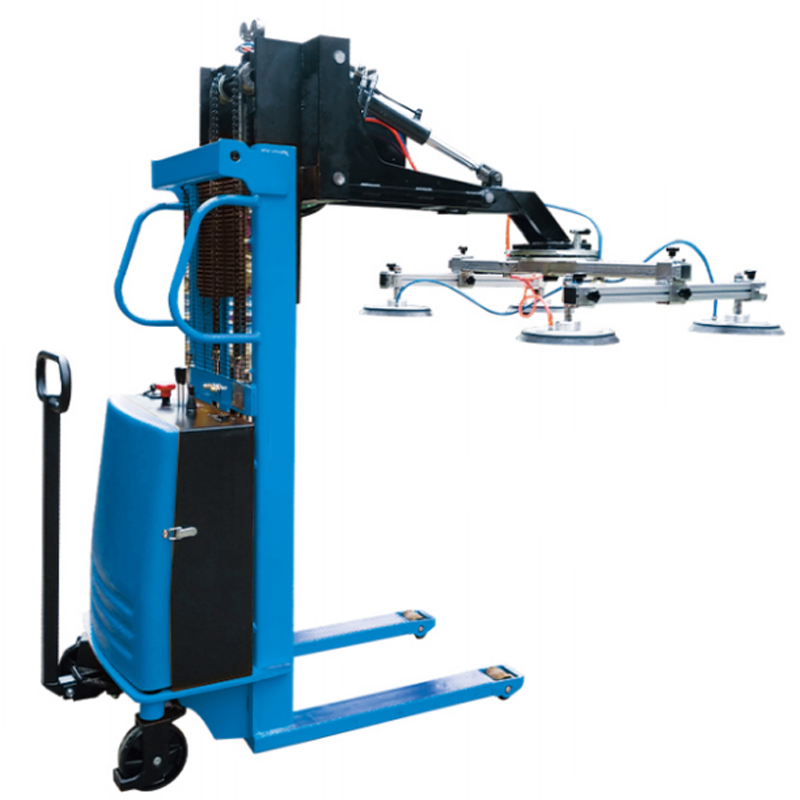

HD Type Vacuum Lifter Robot

This versatile vacuum lifter robot (multiple power/design options) simplifies heavy material handling. Ideal for factories, warehouses, and construction sites, it uses vacuum suction for safe, efficient load movement.
EMAIL INQUIRY

Standard Full Electric	HD4016	HD6016	HD8016	HD10016
Rated Load Capacity	400kgs	600kgs	800kgs	1000kgs
Safe Load Capacity	200kgs	300kgs	400kgs	500kgs
Lifting Height	1600mm	1600mm	1600mm	1600mm
QTY of Suction Caps	4pcs	6pcs	8pcs	10pcs
Cap Diameter	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Plate Size (customized)	2440*1830mm	2440*1830mm	2440*1830mm	2440*3660mm or bigger
Load Center	650mm	650mm	650mm	950mm
Drive Motor	24V/500W	24V/500W	24V/500W	24V/700W
Hydraulic Motor	24V/2000W	24V/2000W	24V/2000W	24V/2000W
Battery	2x12V/70Ah	2x12V/70Ah	2x12V/70Ah	2x12V/100Ah
Charger	24V/10A	24V/10A	24V/10A	24V/15A
Options	Optional 1> Pad frame automatic rotation 360° Optional 2> Remote control Optional 3> For rude surface panels, to use sponge suction cup and bigger system Optional 4> For balanced wheel type,rather than using 2pcs of supporting legs in front Optional 5> Lifting b: 1.6m or 2.5m
