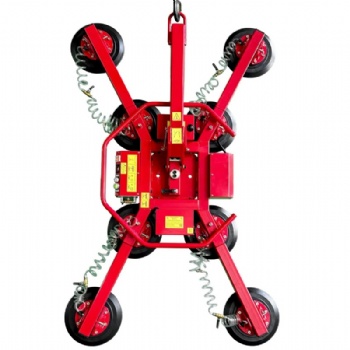

X Type Suction Caps

The SC400X-SC1200X vacuum lifters (4-12 cups, 400-1200kg capacity) feature 300mm suction cups, manual 360° rotation/9° tilt, and 12V battery power. Ideal for handling panels, glass, or flat materials, with customizable options (remote control, auto rotation).
EMAIL INQUIRY

		SC-400X	SC-600X	SC-800X	SC-1000X	SC-1200X
Lifting Capacity	kg	400	600	800	1000	1200
Cup Qty	pcs	4	6	8	10	12
Single Cup Diameter	mm	300	300	300	300	300
Single Cup Capacity	kg	100	100	100	100	100
Movements		360° rotate and 9°tilt manually
Battery &Charger	V	2pcs of 12AH DC12V battery,smart charger with power indicator
Control System		5m long Wire Control (optional remote control:+USD50)
Sucker Frame Size	mm	850750300	1800900300	17601460300	19001600300	19001600300
Extension Bar Length	mm	500
Overall Size	mm	1230910390mm, packed by wooden box
Net Weight	kg	70	90	100	120	120
G.W.(wooden carton)	kg	97	110	123	150	163
