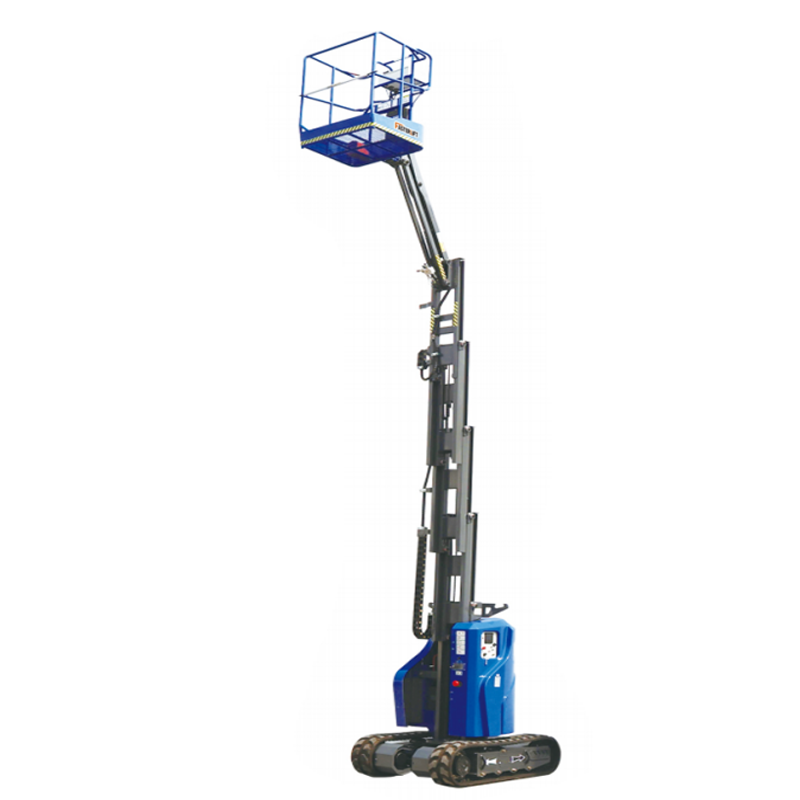

Tracked Vertical Forklift Mast Lift

The Tracked Vertical Forklift Mast Lift is a compact and versatile aerial work platform designed for safe height access in both indoor and outdoor environments. Featuring a forklift-style vertical mast mounted on a crawler chassis, this lift delivers excellent stability, low ground pressure, and enhanced traction on uneven or sensitive surfaces.

Powered by an electric drive system, the machine offers quiet, zero-emission operation, making it suitable for warehouses, factories, shopping malls, and urban job sites. The crawler tracks allow smooth movement over rough ground, ramps, and slopes where wheeled machines may struggle.

With vertical lifting combined with horizontal outreach, precise positioning, and intuitive controls, the FB09C model provides a working height of up to 9.2 meters, making it an efficient solution for maintenance, installation, and inspection tasks in confined or hard-to-reach areas.
EMAIL INQUIRY

Item	FB09C
Working Height (m)	9.2
Max Platform Height (m)	7.2
Max Horizontal Reach (m)	3.51
Overall Length (m)	2.75
Overall Width (m)	1.15
Overall Height (Stowed, m)	1.98
Platform Dimension (m)	0.8×0.93
Ground Clearance (Stowed, mm)	85
Ground Clearance (Raised, mm)	85
Wheelbase (m)	1.15
Loading Capacity (kg)	200
Occupants	2
Turning Radius (Inside/Outside, m)	0.23 / 1.65
Turret Rotation (°)	220
Max Working Slope	X-2.0°, Y-2.0°
Travel Speed (Stowed, km/h)	1.6
Travel Speed (Raised, km/h)	0.9
Up/Down Speed	70 / 50 s
Tyres	230×90×92 mm
Driving Motor	32V / 4 kW
Lifting Motor	48V / 3 kW
Battery	48V / 220Ah
Charger	48V / 35A
Weight (kg)	2800
