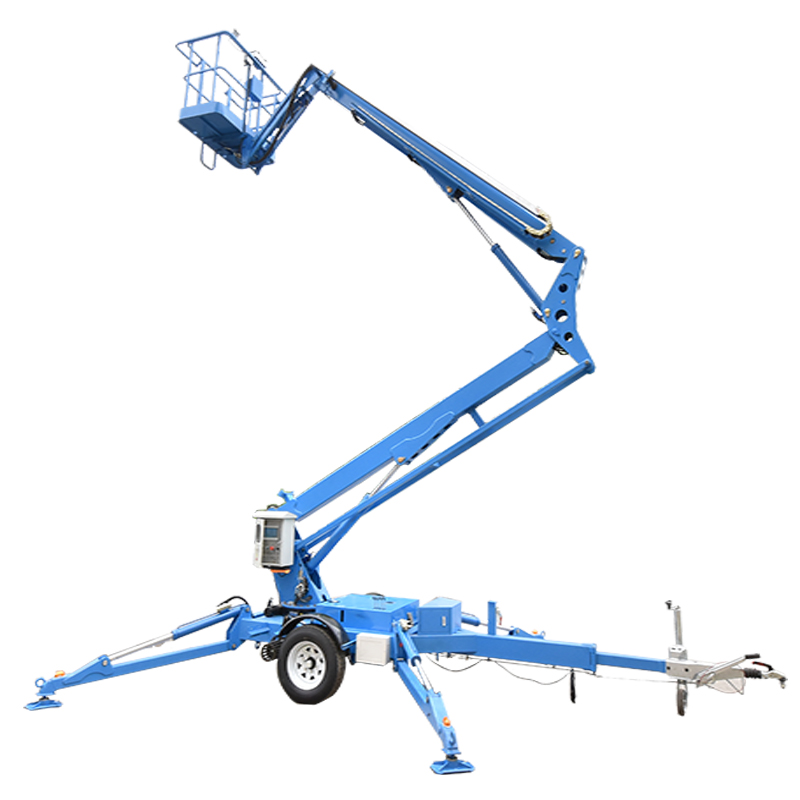

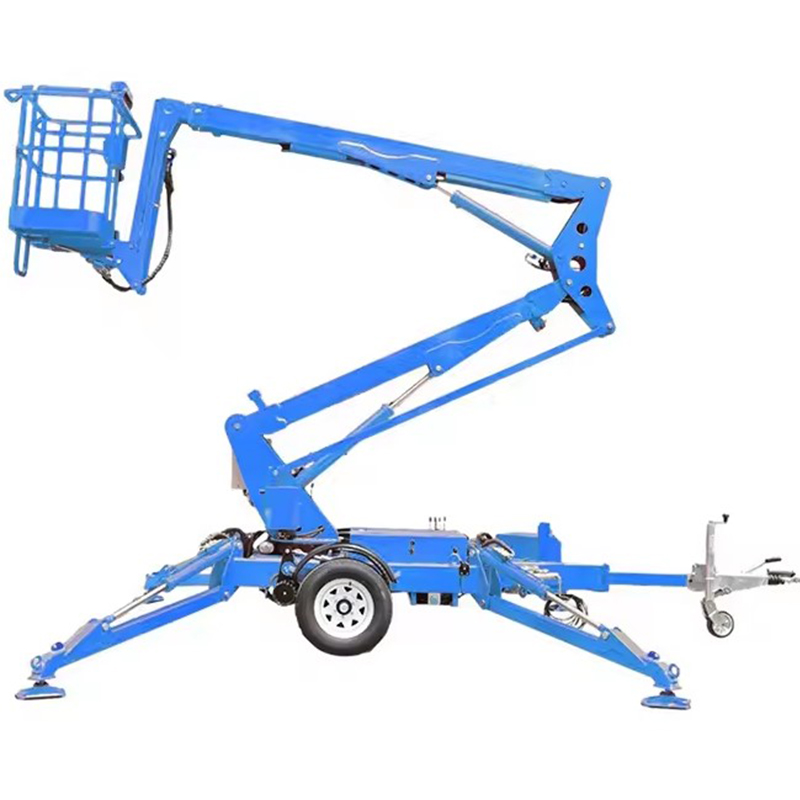

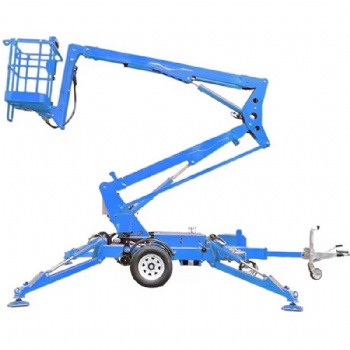

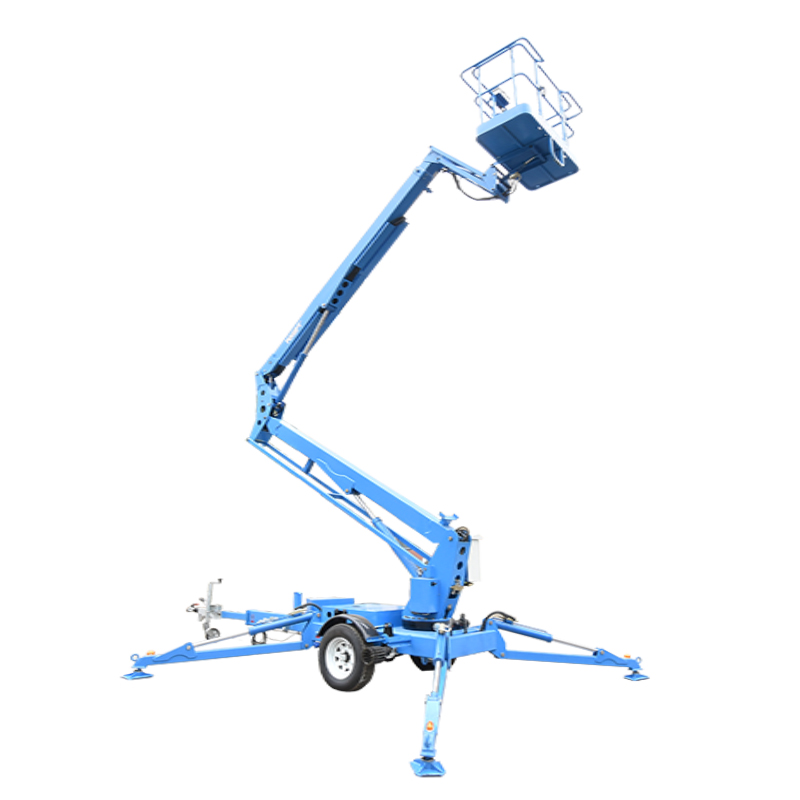

CE certificated Towable Boom Lift

Working height

12M

14M

16M

18M

20M

22M

24M

Lifting height

10M

12M

14M

16M

18M

20M

22M

Load capacity

300KG

300KG

300KG

250KG

250KG

250KG

250KG

Platform size

1.3*0.7m or 1.2*0.8M,optional free

Platform Rotating

360 degree continuously rotation

Hydraulic JIB

Equipped

Equipped

Equipped

Equipped

Equipped

Equipped

Equipped

Telescopic Boom

Optional

Optional

Equipped

Equipped

Equipped

Equipped

Equipped

Outrigger Span

4.2*4.2M

4.2*4.2M

4.2*4.2M

4.2*4.5M

6.5*6.5M

6.5*6.8M

6.5*6.8M

Machine Size(L*W*H)

5.2*1.7*2.1

5.2*1.7*2.1

5.6*1.7*2.1

5.7*1.7*2.2

5.5*1.8*2.3

5.5*1.8*2.3

5.5*1.8*2.3

Machine Weight

1900KG

2100KG

2300KG

2500KG

3300KG

3800KG

4000KG

Control Way

High End Proportional Valve Wireless remote control

High End Stainless Steel Electrical Control Box with User-friendly comfortable buttons

We have control cables for the remote control on basket.If there is signal interference in your project site,you can plug in.Operator-friendly.

Vehicle“CAN”

Control System

Use advanced“CAN”system ,which is widely used for cars in Europe and America,very stable,it has Self-diagnosis and memory function,can show errors in various language directly,likeEnglish,Spanish,Germany,Russia,rather than just an error code.

Proportional Valve

Use America “Hydra-force” proportional valve,high precise oil flow control

Up/Down Speed

Infinitely variable speeds.Proportional valve control

Walking Speed

Germany AL-KO tractor. Towable Speed:110KM/hour on traffic road

Brake

Both mechanical and Electromagnetic brake,electric cables can connect your car control

Traffic Light

Equipped,meet America and Europe standards

OEM/ODM

Support,both light and full customization,like color,logo,special design etc.
