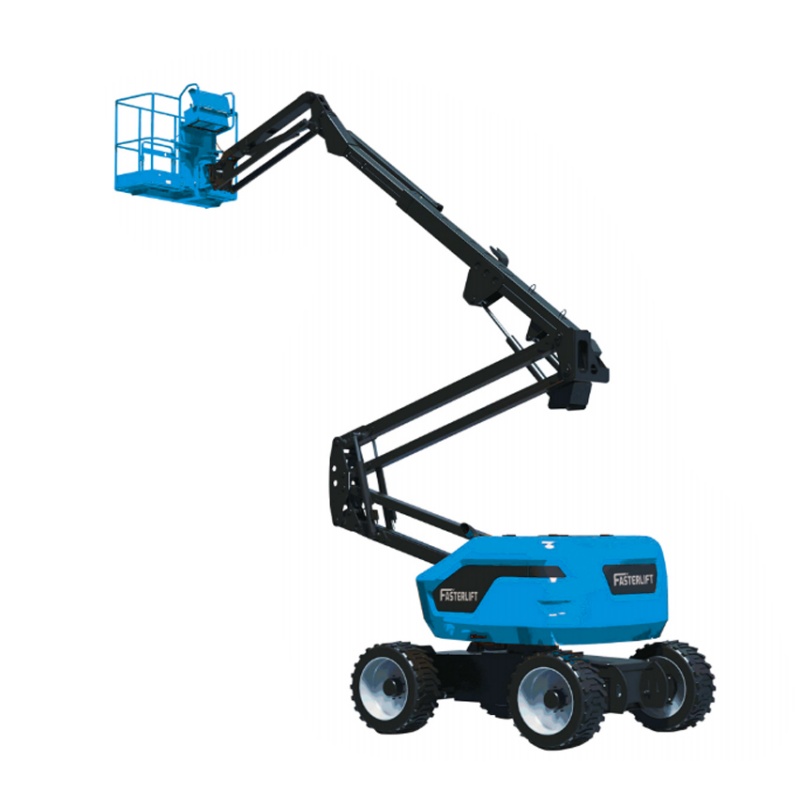

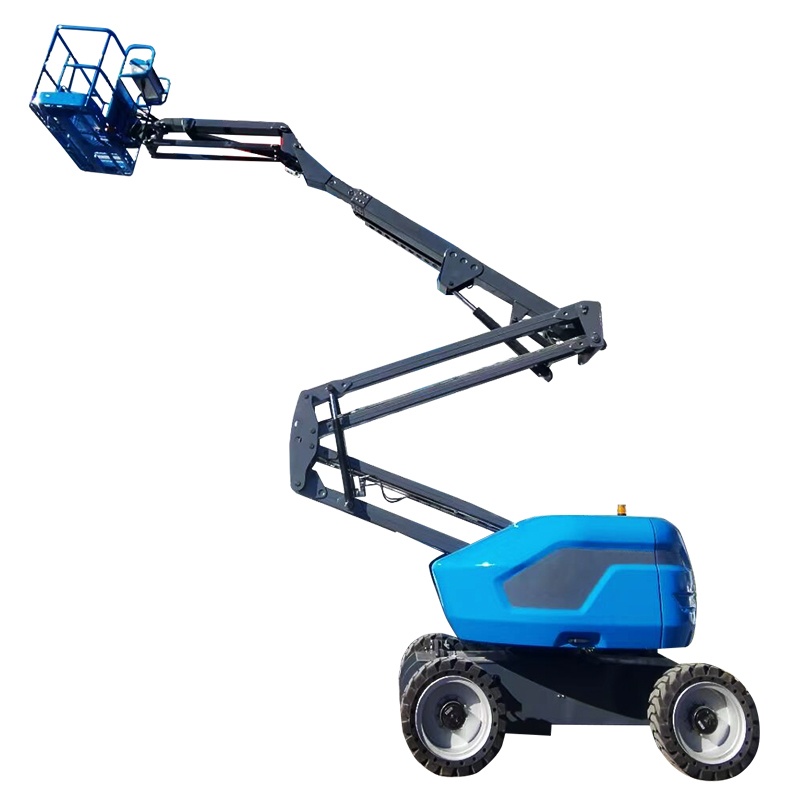

Diesel Powered Type Articulated Boom Lift

This mobile diesel boom lift features an articulating arm for precise positioning. Suited for uneven job sites (construction, landscaping), it combines all-terrain mobility with stable, high-elevation aerial access.
EMAIL INQUIRY

Model	AB18	AB20	AB22	AB27	AB32	AB40	AB47	AB56
Working Height	18m	20.2m	22m	26.2m	32m	40.1m	47.1m	55.8m
Max Platform Height	16m	18.2m	20m	24.2m	30m	38.1m	45.1m	53.8m
Max Working Radius	9.55m	11.6m	12m	15.4m	20.2m	21.6m	23m	25m
Capacity	230kg	230kg	230kg	230kg	480kg	480kg	480kg	480kg
Length( stowed)	7.26m	8.23m	8.43m	10.65m	10.5m	11.46m	11.6m	12m
Width (Stowed)	2.28m	2.38m	2.38m	2.48m	2.5m	2.5m	2.5m	2.5m
Height(stowed)	2.4m	2.5m	2.61m	2.85m	3.22m	3.17m	3.17m	3.4m
Wheel Base	2.5m	2.5m	2.5m	3m	3.66m	3.96m	5.6m	5.6m
Ground Clearance	0.4m	0.4m	0.4m	0.4m	0.4m	0.4m	0.4m	0.4m
Platform Size	1.53*0.76m	1.83*0.76m	1.83*0.76m	1.83*0.76m	2.44*0.91m	2.44*0.91m	2.44*0.91m	2.44*0.91m
Grade Ability	45%	45%	45%	45%	40%	40%	40%	40%
Drive Speed(stowed)	5.1km/h	5.1km/h	5.1km/h	4.8km/h	4.4km/h	4.4km/h	4.4km/h	4.6km/h
Drive Speed(raised )	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h
Inner Turning Radius	1.87m	1.82m	1.82m	1.75m	2.74m	3.13m	2.69m	2.69m
Outer Turning Radius	4.8m	4.85m	4.85m	4.87m	5.85m	6.5m	7.07m	7.07m
WheelDriveSteer	442	442	442	442	444	444	444	444
Max Working Slope	5°	5°	5°	5°	5°	5°	5°	5°
Diesel Engine	Cummins (USA)/Kubota(Japan)/Yanmar (Japan)
Fuel Tank	110L	110L	110L	150L	160L	160L	160L	160L
Weight	7800kg	10200kg	12600kg	15700kg	21000kg	25400kg	26110kg	29800kg
