  • Forklift Fixture Electric Vacuum Suction Cup

Forklift Fixture Electric Vacuum Suction Cup

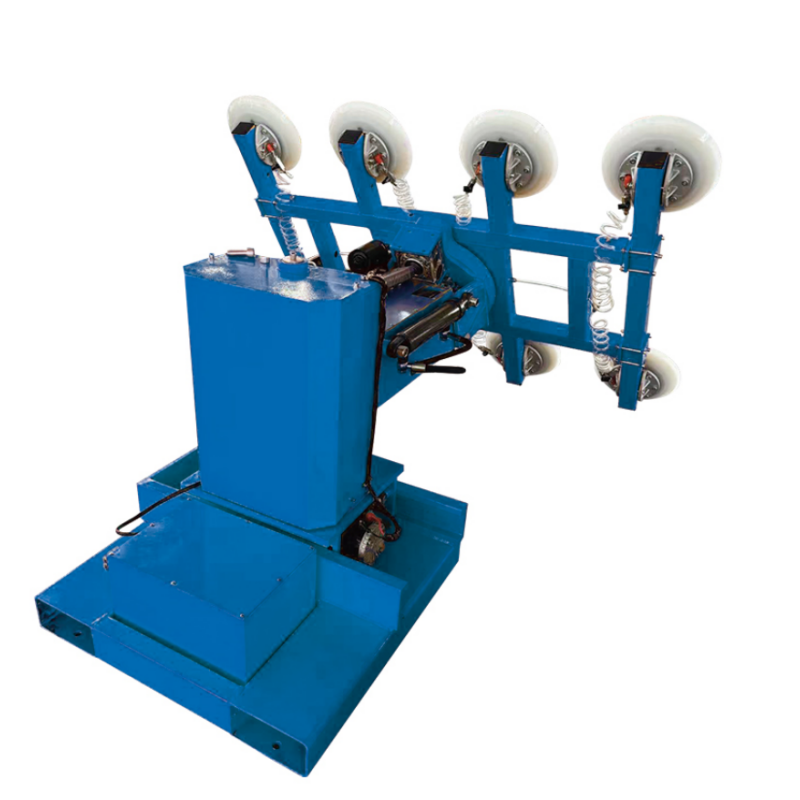

  • The Forklift Fixture Electric Vacuum Suction Cup is a professional material handling solution designed to be mounted directly onto a forklift. It is widely used for lifting and transporting sheet metal, steel plates, glass panels, and other smooth, non-porous materials in factories, warehouses, and construction sites.

    Equipped with a high-performance electric vacuum system and multiple suction cups, this lifter provides strong, stable, and reliable gripping force. The system supports manual or powered 360° rotation as well as optional 90° left and right side turning, allowing operators to position loads precisely and safely.

    Powered by a rechargeable battery with a dedicated charger, the vacuum lifter ensures continuous operation with minimal maintenance. Its robust steel frame and modular design allow different load capacities from 300kg up to 800kg, meeting various industrial lifting requirements.

    This forklift vacuum attachment significantly reduces manual labor, improves productivity, and enhances operational safety, making it an ideal solution for modern material handling applications.
  • EMAIL   INQUIRY

Forklift FixtureSC300F
SC400FSC500FSC600FSC800F
Load Capacity300kg400kg500kg600kg800kg
Suction Cup QtyΦ250X4pcsΦ300X4pcsΦ300X6pcsΦ300X6pcsΦ300X6pcs
Battery (V/AH)12/20 *212/20 *212/20 *212/20 *212/20 *2
Battery Charger (V/A)24/624/624/624/624/6
Frame Size1000*8001000*8001350*10001350*10001350*1000
Frame Extension Size1000*8001000*8002110*10002110*10002110*1000
Rotation MethodManual or Powered 360°(optional)
Side Turning MethodManual or Powered 90°(Left and right)(optional)
Packing Size(mm)1100800500110080050012401080113012401080113012401080113
