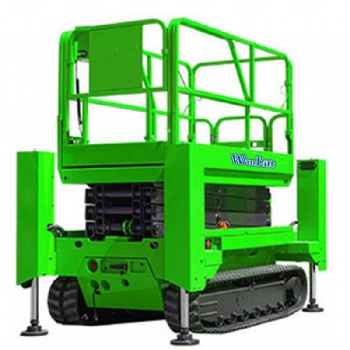

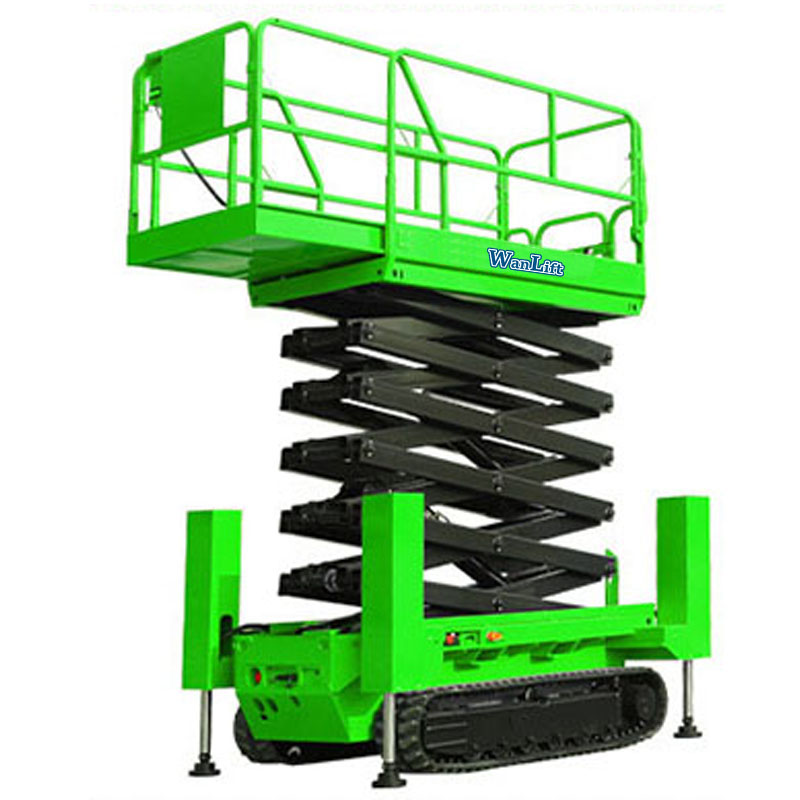

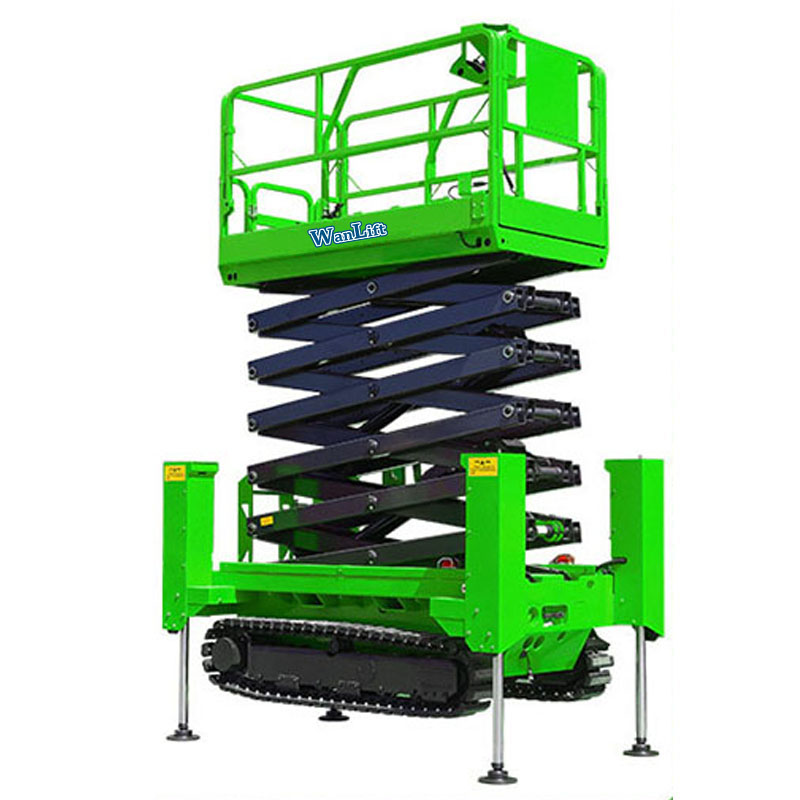

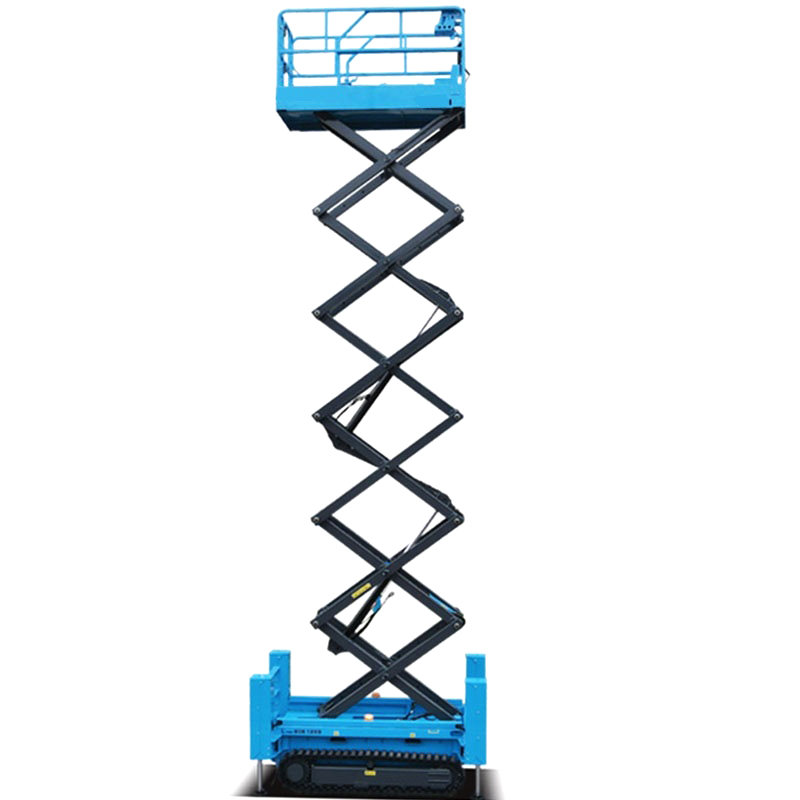

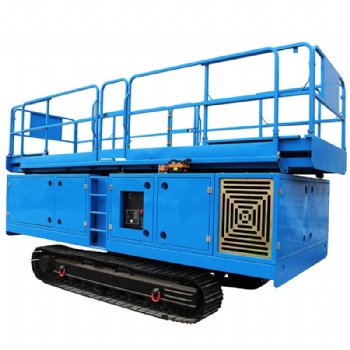

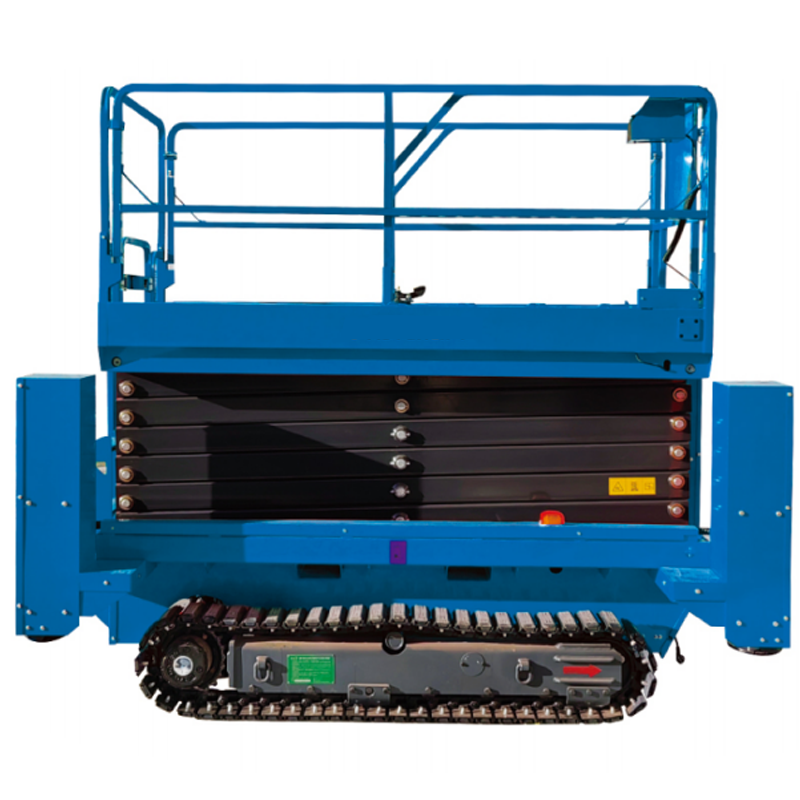

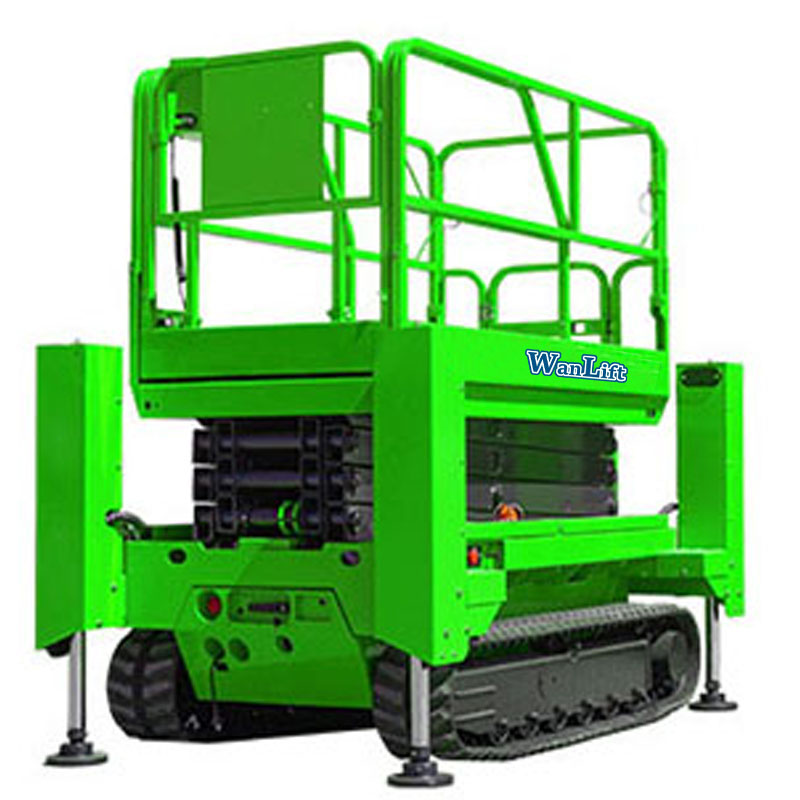

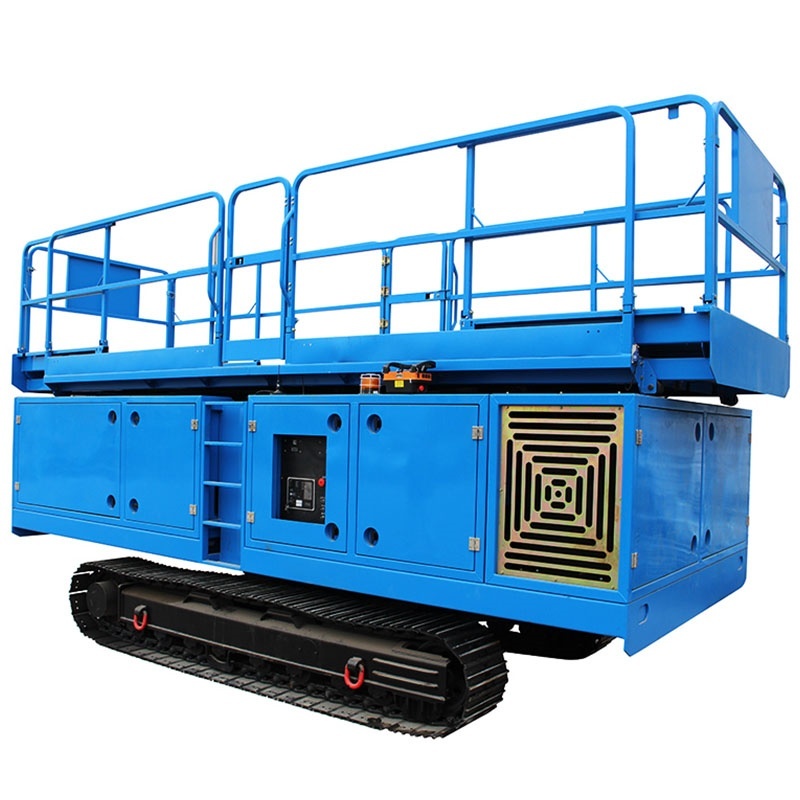

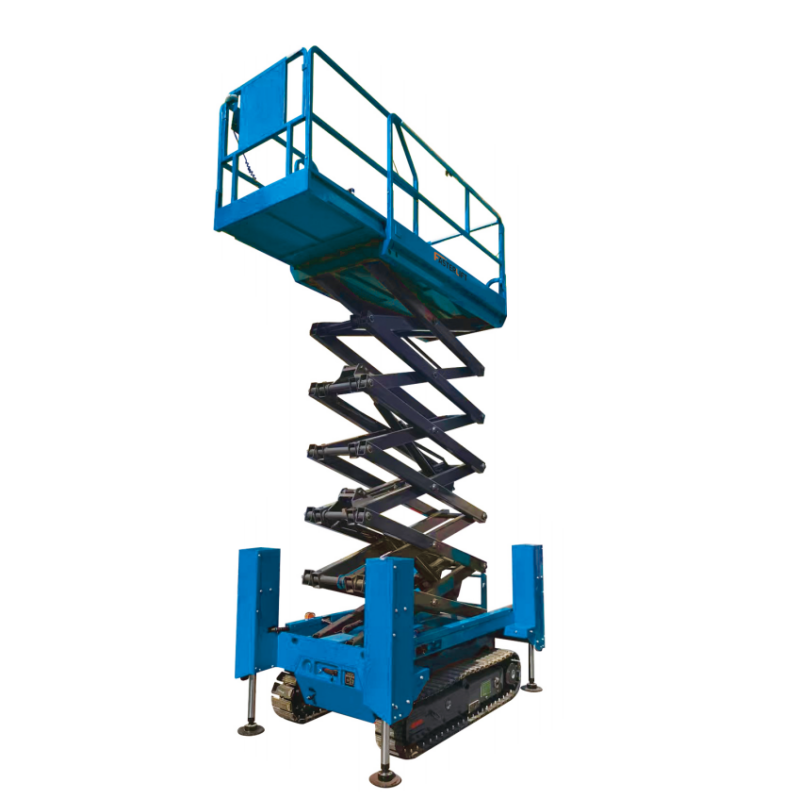

Tracked Crawler Rough Terrain Scissor Lift

Working height

8m

10m

12m

Max platform height

6m

8m

10m

11.80m

10m

Load Capacity

450kg

450kg

450kg

320kg

320kg

Extendable platform

0.9m/capacity:113kg

0.9m/capacity:113kg

0.9m/capacity:113kg

0.9m/capacity:113kg

0.9m/capacity:113kg

Platform size(L*W*H)

2.27×1.10×1.1m

2.27×1.10×1.1m

2.27×1.10×1.1m

2.27×1.10×1.1m

2.64×1.13×1.25m

Overall size(L*W*H)

2.84*1.58*2.43mm (Guardrails unfolded)

2.84*1.58*2.53mm (Guardrails unfolded)

2.84*1.58*2.63mm (Guardrails unfolded)

2.84*1.58*2.73mm (Guardrails unfolded)

3.21*1.7*2.76mm (Guardrails unfolded)

Overall size(L*W*H)

2.84*1.58*1.88mm (Guardrails folded)

2.84*1.58*1.98mm (Guardrails folded)

2.84*1.58*2.08mm (Guardrails folded)

2.84*1.58*2.18mm (Guardrails folded)

3.21*1.7*2.13mm (Guardrails folded)

Ground Clearance

0

0

0

0

0

Min.turning Radius

0

0

0

0

0

Lifting Motor

DC48V/4.5kw

DC48V/4.5kw

DC48V/4.5kw

DC48V/4.5kw

DC48V/4.5kw

Moving Motor

AC32V/4kw

AC32V/4kw

AC32V/4kw

AC32V/4kw

AC32V/4kw

Raising/lowering speed

3-5m/min

3-5m/min

3-5m/min

3-5m/min

3-5m/min

Driving speed

1.8km/h

1.8km/h

1.8km/h

1.8km/h

1.8km/h

Batteries

8×12V/200ah

8×12V/200ah

8×12V/200ah

8×12V/200ah

8×12V/200ah

Smart charger

48V/30A

48V/30A

48V/30A

48V/30A

48V/30A

Grade ability

25%

25%

25%

25%

25%

1.5°/3°

1.5°/3°

1.5°/3°

1.5°/3°

1.5°/3°

Overall weight

3480kg

3580kg

3680kg

3780kg

4000kg
