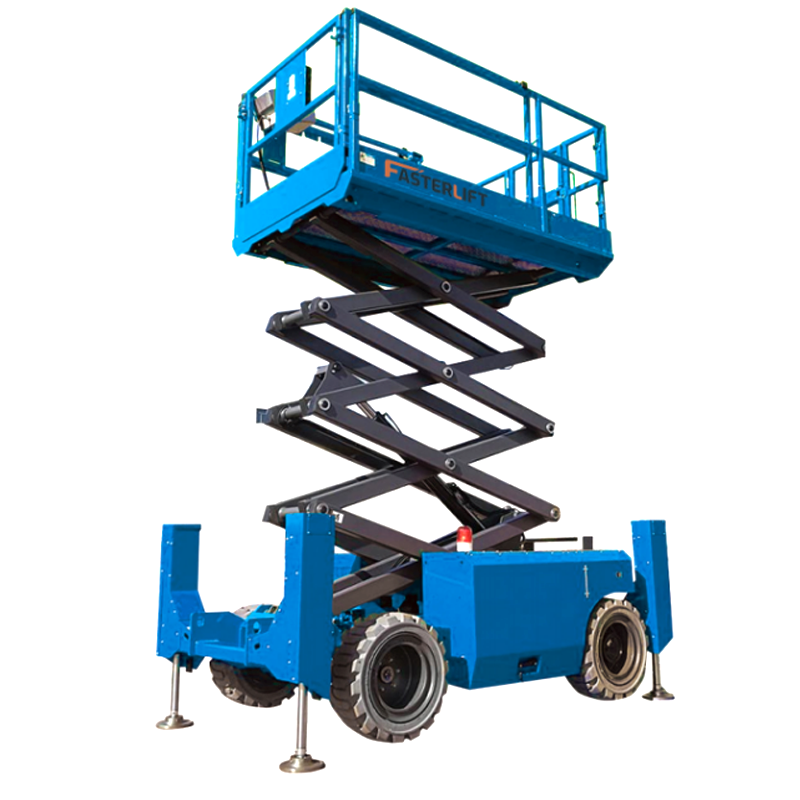

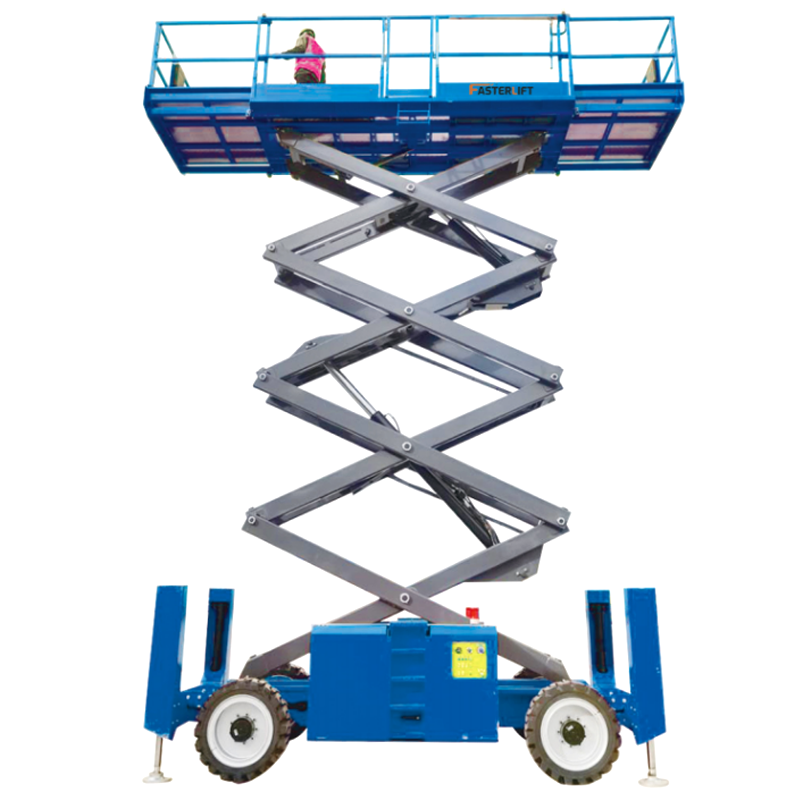

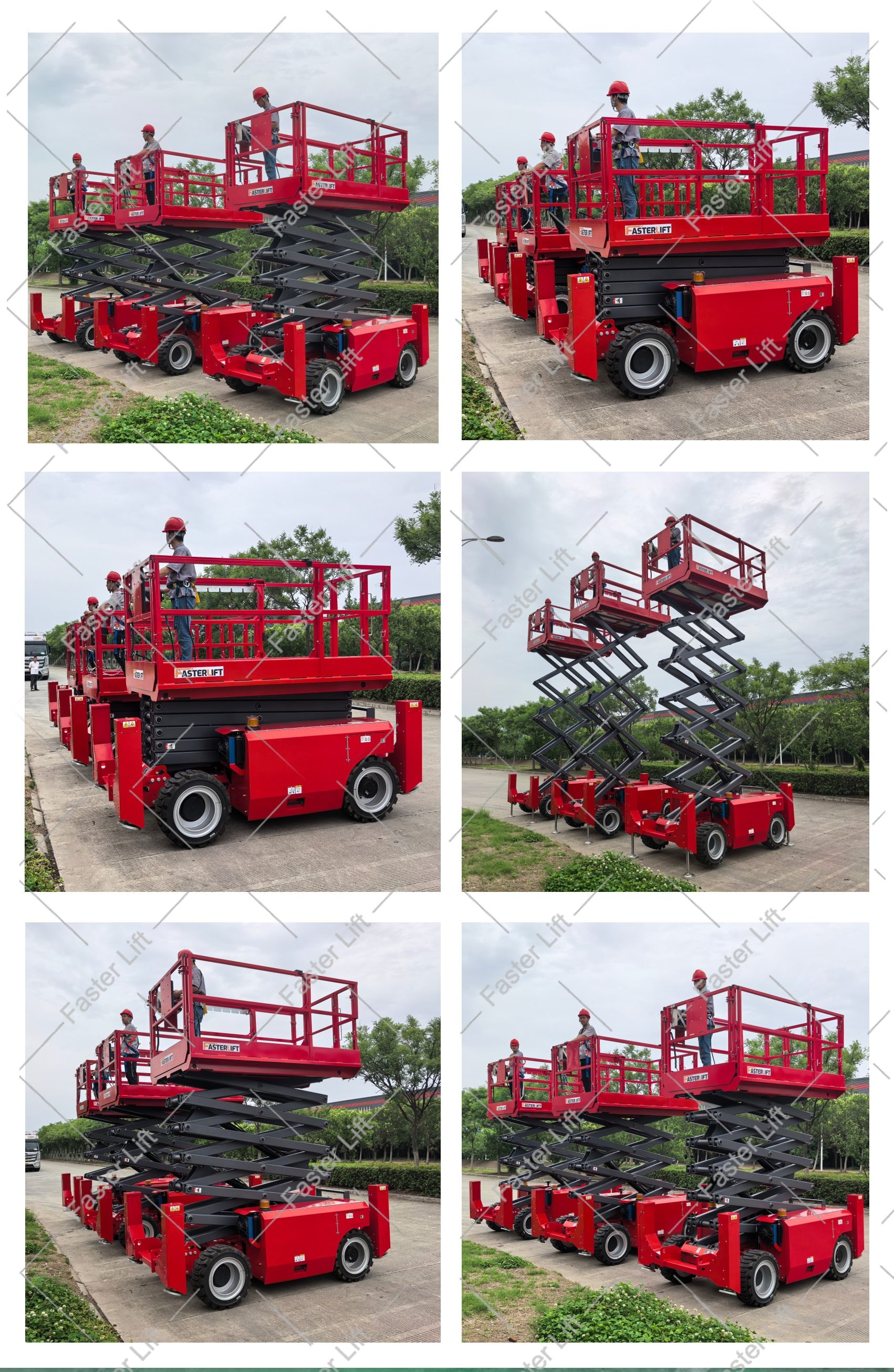

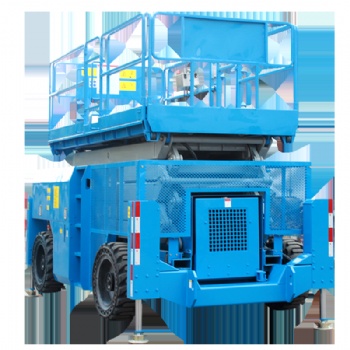

A rugged diesel scissor lift with self-propulsion, perfect for high-access outdoor tasks. Its robust design ensures smooth, stable elevation—ideal for construction sites, industrial maintenance, and rough-terrain operations.
EMAIL INQUIRY

Model	FL10D	FL12D	FL14D	FL15D	FL18D
Working Height(m)	10	12	14	15	18
Max Platform Height(m)	8	10	12	13	16
Min Platform Height(m)	1.1	1.23	1.36	1.85	2.06
Lifting capacity(kg)	567	454	345	570	570

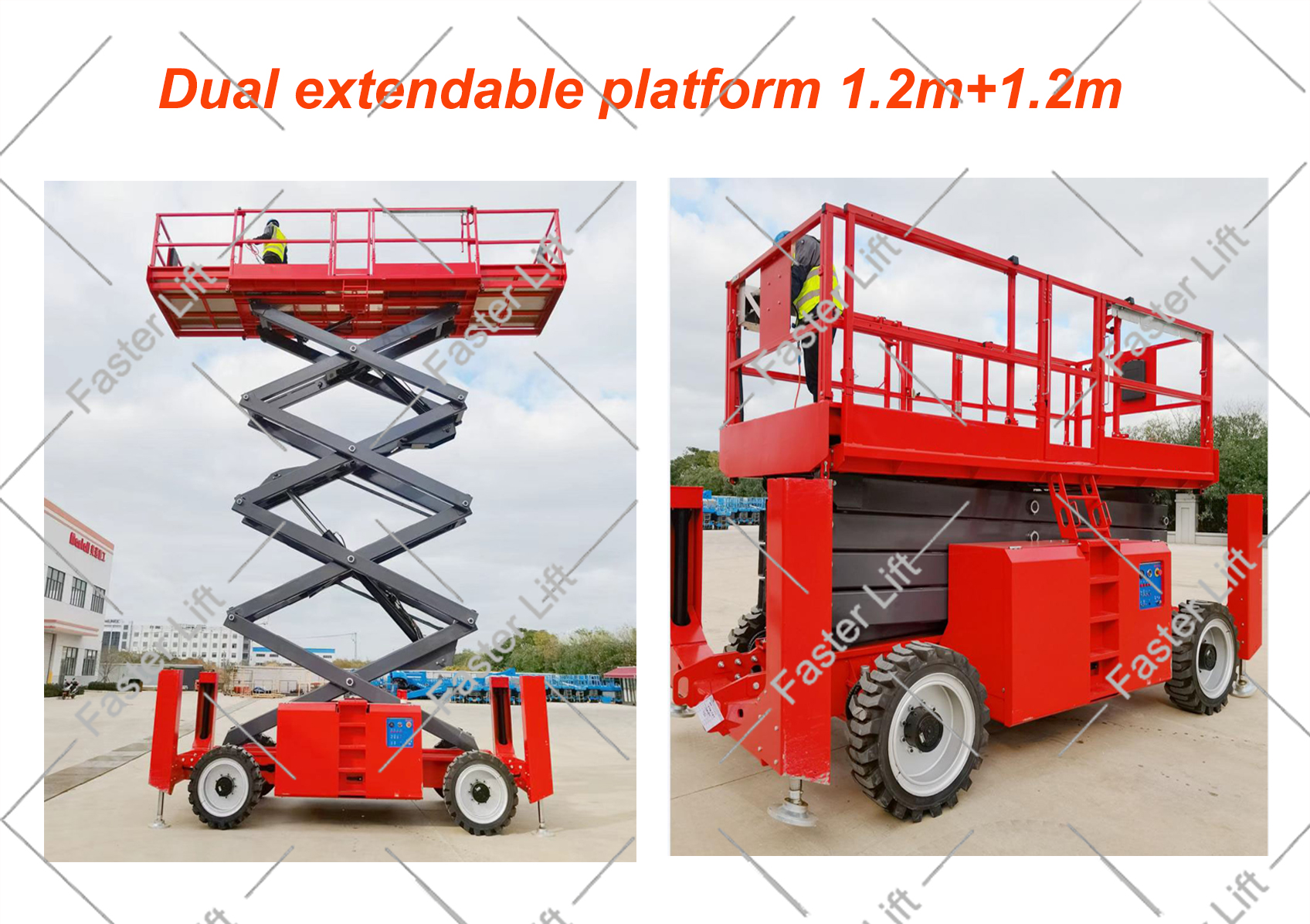

Extendable Platform Length(m)	1.5	1.5	1.5	1.2+1.2	1.2+1.2
Extended Platform Capacity(kg)	136	136	136	230	230
Platform Size Stowed(m)	2.5*1.6	2.5*1.6	2.5*1.6	3.9*1.9	3.9*1.9
Platform Size Extended(m)	4*1.6	4*1.6	4*1.6	6.3*1.9	6.3*1.9
Guardrail Height(m)	1.15	1.15	1.15	1.15	1.15
Machine Height(Guardrails unfolded)	2.4	2.52	2.65	2.99	3.2
Machine Height(Guardrails folded)	1.89	1.89	1.89	2.19	2.47
Machine Length(m)	2.67	2.67	2.67	4.88	4.88
Machine Width(m)	1.7	1.83	1.95	2.3	2.3
Drive Speed Stowed(km/h)	4.5	4.5	4.5	4.5	4.5
Drive Speed Extended(km/h)	0.7	0.7	0.7	0.7	0.7
Raising Time(km/h)	35	37	42	68	75
Lowering Time(s)	40	45	50	50	55
Ground clearance(m)	0.17	0.17	0.17	0.17	0.17
Turning Radius(m)(inside)	1.58	1.58	1.58	2.72	2.72
Turn diameter(m)(outside)	3.89	3.89	3.89	5.89	5.89
Gradeability(%)	35	30	30	45	40
Tilt Sensor Front to Back	3°	3°	3°	3°	3°
Tilt Sensor Side to Side	2°	2°	2°	2°	2°
Outrigger Level Ability Front to Back	7°	7°	7°	7°	7°
Outrigger Level Ability Side to Side	11°	11°	11°	11°	11°
Ground clearance(m)	0.17	0.17	0.17	0.17	0.17
Drive Mode	4W*2WS	4W*2WS	4W*2WS	4W*2WS	4W*2WS
Control	Proportional Valve
Diesel Engine	3TNF80F/17.8KW Japam Yanmar			4TNV88/35.3KW Japam Yanmar
Tire size(mm)	Solid tires 26*12-16.5			Solid tires 33*12-20
Hydraulic Oil Tank Capacity(L)	115	115	115	115	115
Diesel Fuel Tank Capacity(L)	115	115	115	115	115
Standard	GB/CE	GB/CE	GB/CE	GB/CE	GB/CE
Machine Weight(kg)	3660	3930	4200	/	/
Weight with Outriggers(kg)	4120	4390	4680	6950	8810

Safety Precautions:

1. Horizontal alarm is installed on the lift.

2. When the scissor lift tilts more than 3 degrees in all directions,the lift protection system automatically opened.Only when the lift has a descending action, it can be used normally until it is safe.

3. With explosion-proof system,protect hydraulic pipe,anti-hydraulic pipe rupture.

4. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.

5.With self-diagnosis function, customers can quickly grasp the equipment's own working status,better maintenance of the equipment.

Features & Advantages:

1.Strong power: The diesel scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds.

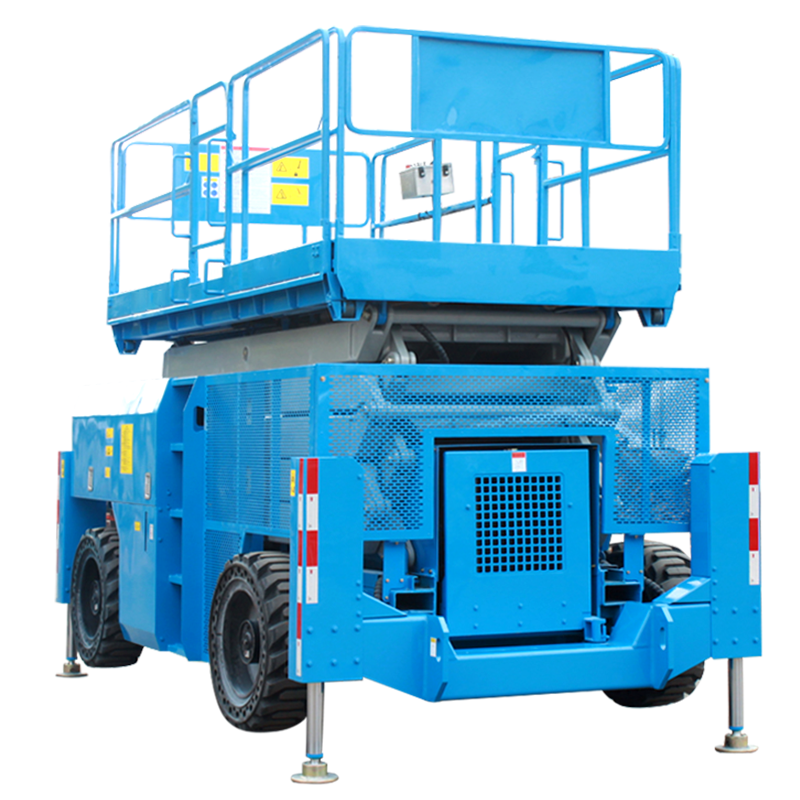

2.Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair.

3.Active Oscillation Axle: Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheel even on uneven road without reducing the driving force.

4.Large working space: The maximum size of platform extended by cylinder forward

5.Outrigger: The hydraulic outriggers can be used to level vehicles on uneven ground.
